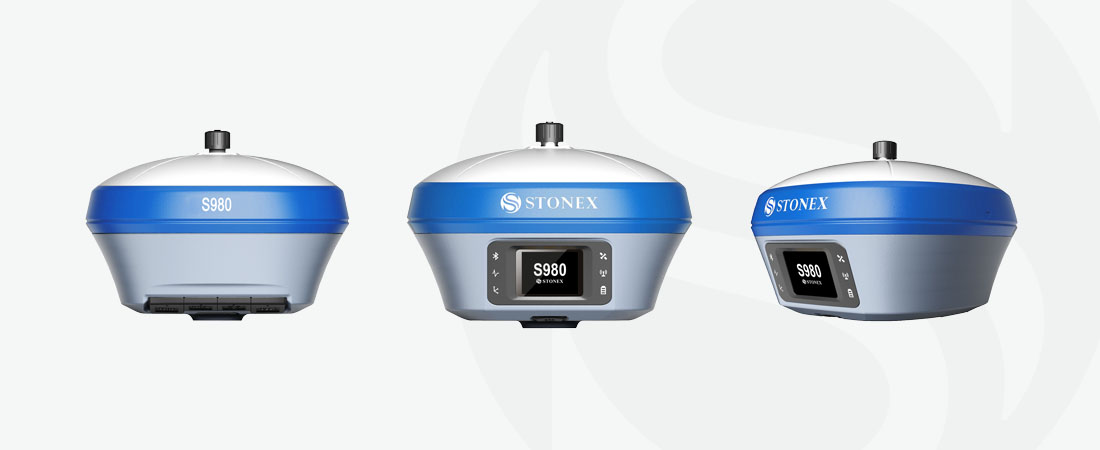

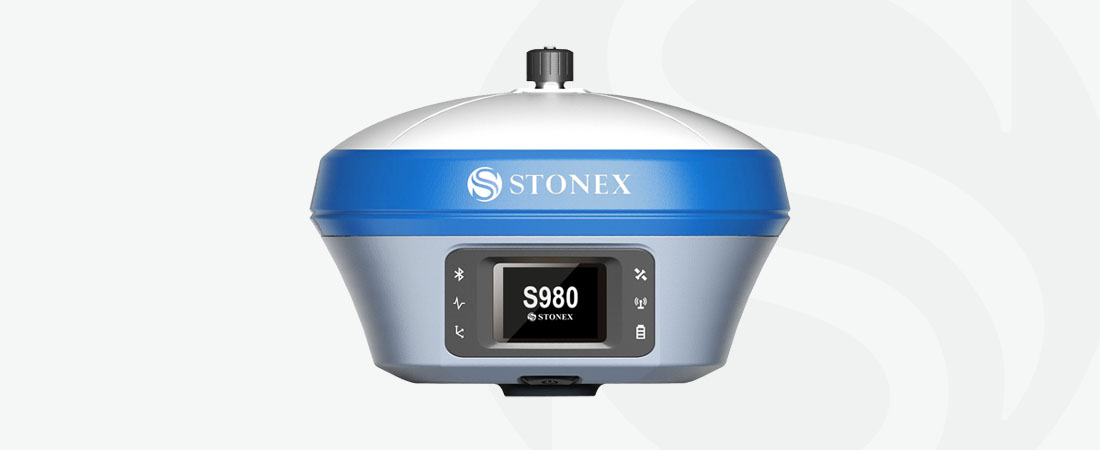

Stonex S980+
With a colour touch screen and the ability to connect an external antenna, the Stonex S980+ is a highly effective receiver capable of tracking GPS, GLONASS, BEIDOU, GALILEO and QZSS constellations, making it suitable for any job. The S980+ has a built-in 2-5W UHF-radio with a frequency range of 410-470MHz. The receiver is equipped with an external radio antenna for better performance.
Stonex S980+ RTK GNSS receiver
The perfect portable base station GNSS-receiver
The Stonex S980+ can be connected to an external GNSS antenna via the dedicated connector, converting it from an RTK-receiver to a CORS-receiver. A 4G GSM-modem ensures a fast Internet connection, while Bluetooth and Wi-Fi modules ensure a reliable flow of data to the controller at all times.
These features, combined with the built-in 2-5W radio, make the Stonex S980+ the perfect portable base station receiver. The S980+ also features optional IMU technology with fast initialisation and up to 60° tilt.
1PPS port for precision timing
The Stonex S980+ has a 1PPS port that can be used in applications where precise timing is required to ensure that multiple devices operate together or use the same parameters to integrate systems based on precise timing.

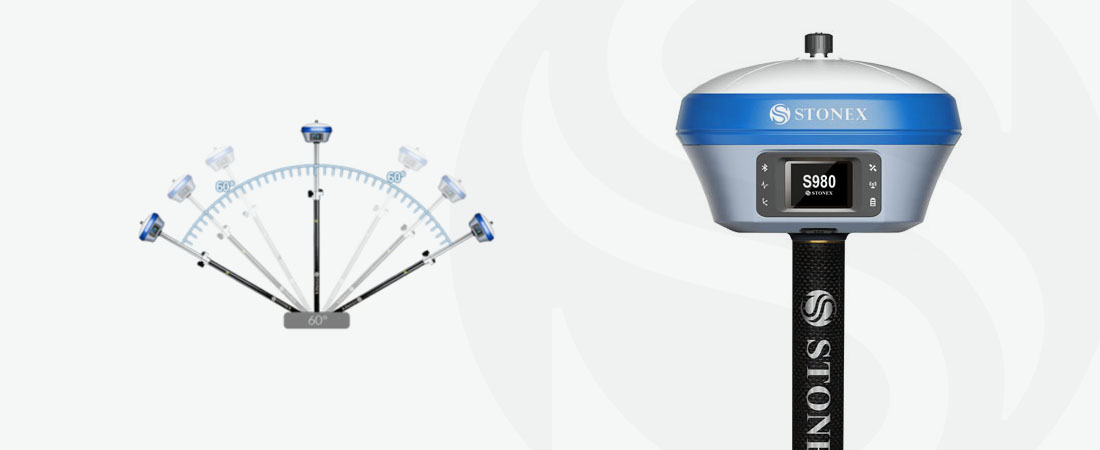

Advantages of the Stonex S980+ GNSS-receiver with optional IMU
Stonex S980+ with IMU-system makes all measurements, both surveying and stakeout, reliable and makes point acquisition extremely fast: up to 40% of fieldwork time can be saved!
- Fast initialisation
- Up to 60° tilt
- 2cm accuracy 30°
- 5cm accuracy 60°
- Fast and accurate survey
- No problem with electromagnetic interference
More efficiënt and accurate with network RTK
The Stonex S980+ GNSS-receiver works best in combination with Real-Time Kinematic (RTK) corrections. By using an RTK network, you do not need to use your own base station to work with centimetre accuracy. Save the cost and time of setting up a GNSS-base station.
For maximum consistency and quality we recommend the VRS NEXT network. With a survRTK Service subscription you can rely on the highest accuracy with the Stonex S980+ throughout the Benelux.
CHARACTERISTICS
- 1408-channel RTK GNSS Engine
- Receives all satellite constellations
- Optional IMU for tilt measurements up to 60°
- Easy configuration via web interface
- Integrated 410-470 MHz UHF radio
- 4G modem for mobile data
- Up to 10 hours of continuous operation with integrated battery
