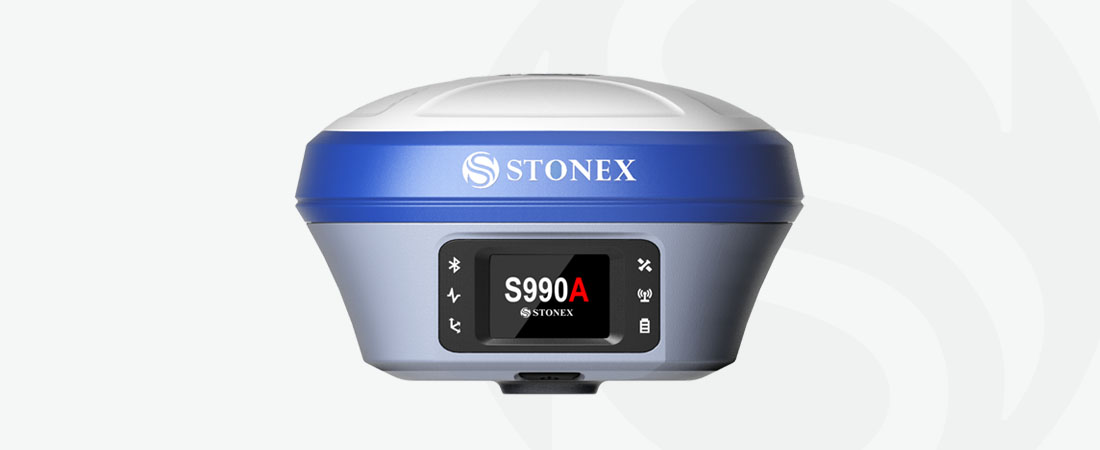

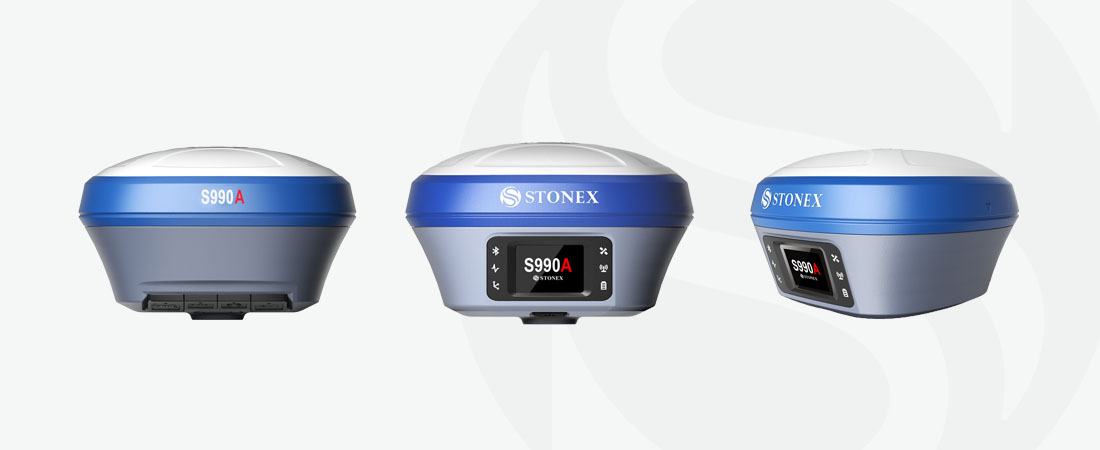

Stonex S990+
The Stonex S990+ is a 1408 channel GNSS-receiver with features that improve survey performance in the field. The S990+ receiver is equipped with all important connectivity features: Bluetooth, WiFi, UHF-radio and a 4G modem that works with all world signals, ensuring a fast internet connection.
Stonex S990+ RTK GNSS receiver
IMU for high performance
The internal 10,200mAh battery provides 10 hours of operation and can be recharged via the USB Type-C connector. The IMU-system supports tilted measurement (TILT) with fast initialisation, so the operator can get fast and accurate measurements. The colour touch screen and web UI make it quick and easy to get full control of the receiver.
Precision timing with 1PPS port
The 1PPS port is an additional benefit available on this GNSS-receiver, as it can be used in scenarios where precise timing is required to ensure that multiple devices work together, or in scenarios where the same parameters are used to integrate systems based on precise timing.
Multi-constellation GNSS-receiver
Stonex S990+, with its 1408 channels, provides an excellent real-time on-board navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO and QZSS) are included at no extra cost.
More efficiënt and accurate with network RTK
The Stonex S990+ GNSS-receiver works best in combination with Real-Time Kinematic (RTK) corrections. By using an RTK network, you do not need to use your own base station to work with centimetre accuracy. Save the cost and time of setting up a GNSS-base station.
For maximum consistency and quality we recommend the VRS NEXT network. With a survRTK Service subscription you can rely on the highest accuracy with the Stonex S990+ throughout the Benelux.
CHARACTERISTICS
- 1408-channel RTK GNSS Engine
- Receives all satellite constellations

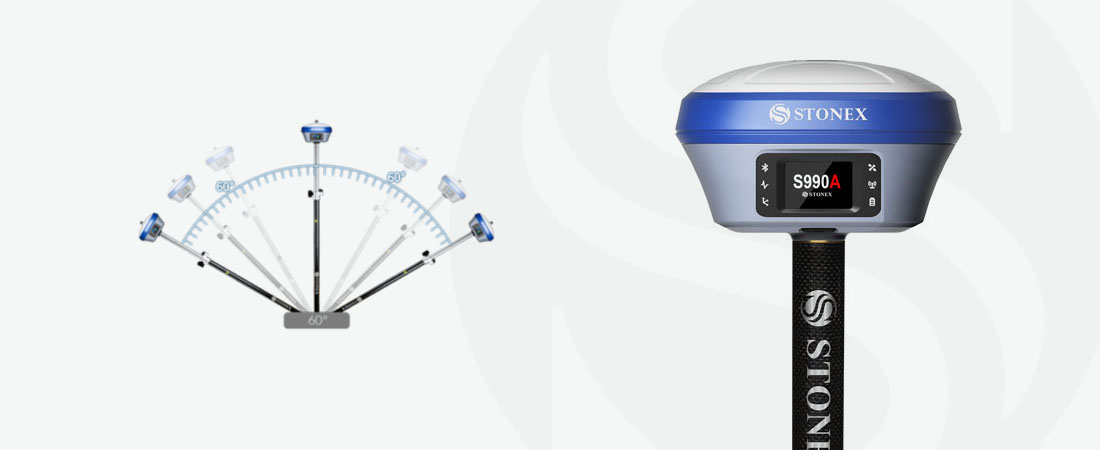

- IMU for tilt measurements up to 60°
- Easy configuration via web interface
- Integrated 410-470 MHz UHF radio
- 4G modem for mobile data
- Up to 10 hours of continuous operation with integrated battery
DOWNLOADS
MORE INFORMATION?
Would you like to know more about our GNSS receivers or arrange a demonstration? Contact us using the buttons below or call us directly on +31 297 769 101.
